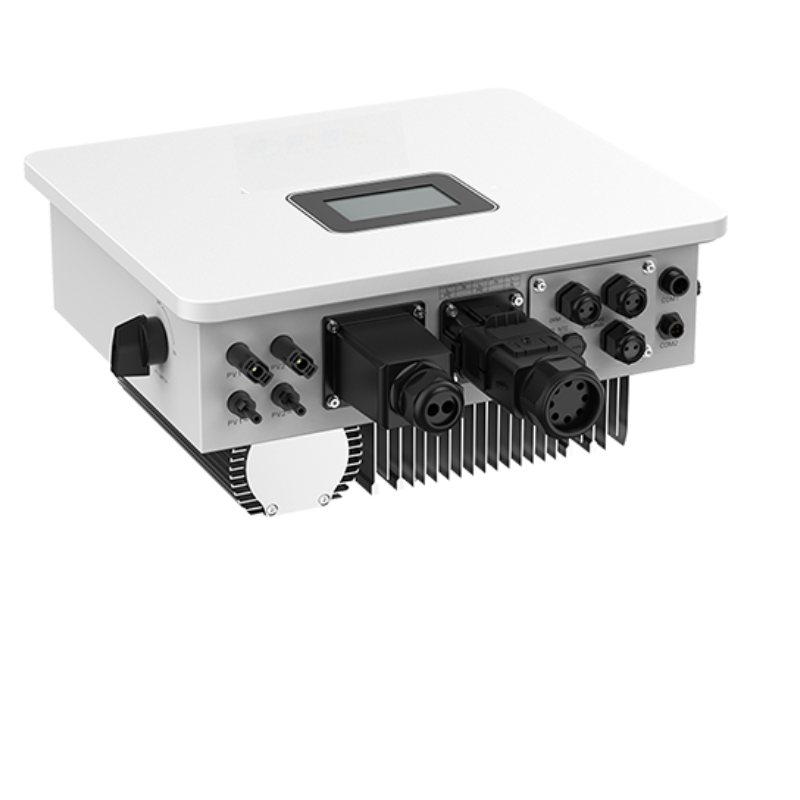

Megarevo 6kVA Hybrid Inverter
| Technical Parameters | Details |
|---|---|
| Model | R6KL1DA-G2S |
| PV input data | |
| Max. PV input power (kW) | 9 |
| Max. PV input voltage (V) | 550 |
| Battery input data | |
| Battery voltage range (V) | 40~58 |
| BMS communication | CAN |
| AC output data (grid side) | |
| Rated output power (kW) | 6 |
| Rated grid voltage (V) | 230 |
| Rated grid frequency (Hz) | 50/60 |
| AC output data (back-up) | |
| Rated output power (kW) | 6 |
| Max. apparent output power (kVA) | 6.6 |
| Rated output voltage (V) | 230 |
| Rated output frequency (Hz) | 50/60 |
| Max. AC output current (A) | 28.7 |
| Display and communication | |
| Display | LCD |
| Communication | RS485/CAN |
